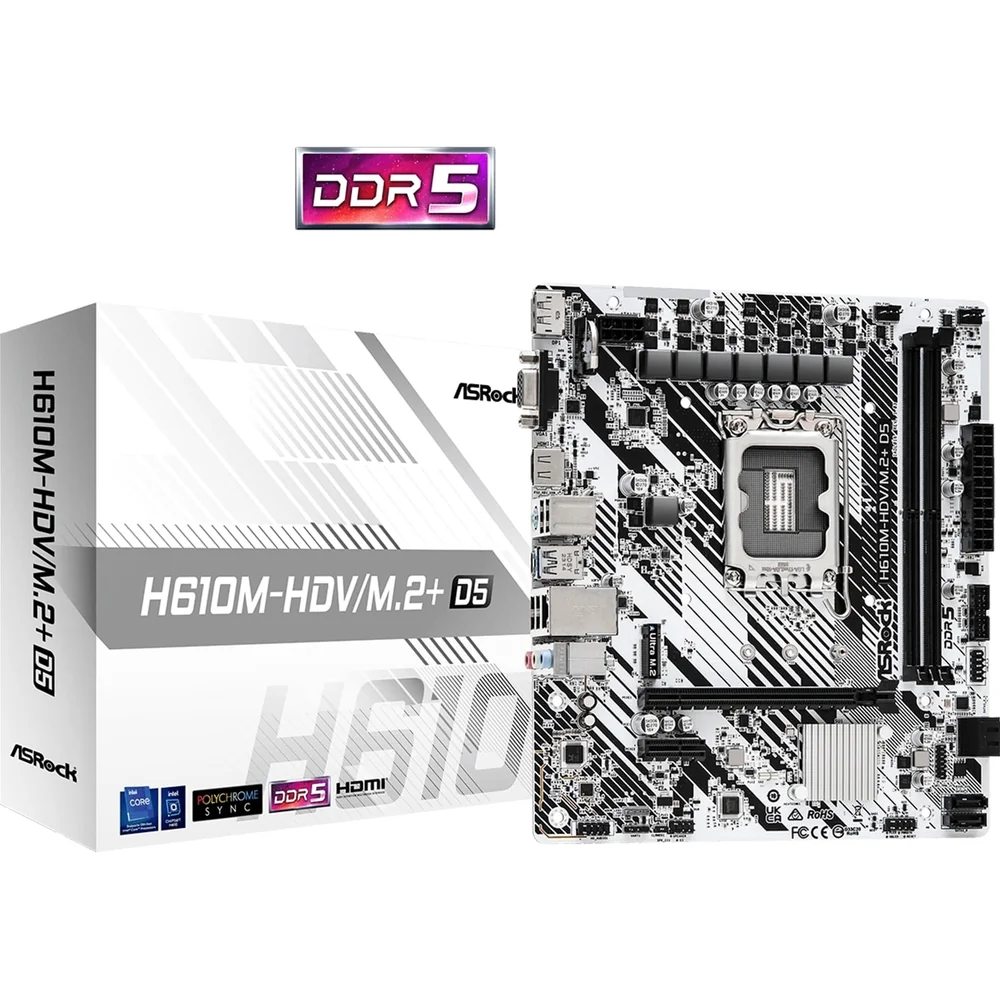

ASRock H610M-HDV/M.2+ D5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, 1x USB-C Port, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

ASRock H610M-HDV/M.2+ D5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, 1x USB-C Port, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

Product ID: 882061016836 This is the unique Computey listing identifier for this product. EAN: 4710483943478 This is the European Article Number (EAN) for this product.
Computey Outlet storefront logo
Computey Outlet Seller ID: 59613811 • Company This seller is registered on Computey as a Company.
5.0 (4 reviews)
Contact seller
£58.37
In Stock • Installments available with Klarna at checkout
173 available
See more products from this seller
Free Delivery

Motherboard Specifications

These are the product's key specifications set by the seller.

Product specifications are subject to change at the hands of the seller at any time, and may be inaccurate.
  • Condition: New

Product description

View ASRock H610M-HDV/M.2+ D5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, 1x USB-C Port, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port specs & used value · component catalogue

6+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

POLYCHROME RGB
This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects .
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Specification

Unique Feature

Superb Productivity
Dual Channel DDR5

Rock-Solid Durability
6+1 Power Phase

EZ Update
ASRock Auto Driver Installer

CPU
Supports 13th Gen & 12th Gen and next gen Intel® Core? Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology

Chipset
Intel® H610

Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
13th Gen Intel® Core? Processors support DDR5 non-ECC, un-buffered memory up to 5600*
12th Gen Intel® Core? Processors support DDR5 non-ECC, un-buffered memory up to 4800*
Max. capacity of system memory: 96GB
Supports Intel® Extreme Memory Profile (XMP) 3.0
* Actual support may vary by CPU.

BIOS
128Mb AMI UEFI Legal BIOS with GUI support

Graphics
Intel® Xe Graphics Architecture (Gen 12)*
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H

Slots

CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:
1 x PCIe 3.0 x1 Slot (PCIE2)*
*Supports NVMe SSD as boot disks

Storage

Chipset:
1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks

USB
1 x USB 3.2 Gen1 Type-C (Rear)
3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
6 x USB 2.0 (4 Rear, 2 Front)
* All USB ports support ESD Protection

Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x Addressable LED Header*
1 x CPU Fan Connector (4-pin)**
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W).
*** CHA_FAN1/WP supports the fan power up to 2A (24W).
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
1 x USB 3.2 Gen1 Type-A Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
ASRock Polychrome SYNC*

UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket

Form Factor
Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS
Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)

Product specifications

Listing Details

  • Listing ID: 882061016836
  • EAN: 4710483943478
  • MPN: H610M-HDV/M.2+ D5
  • Brand: Asrock
  • Condition: New

Technical

  • Chipset: Not provided
  • Memory Type: Not provided
  • WiFi:Not Included
  • Onboard Video: Not provided

Physical

  • Socket: Not provided
  • Form Factor: Not provided
  • Color: Not provided
