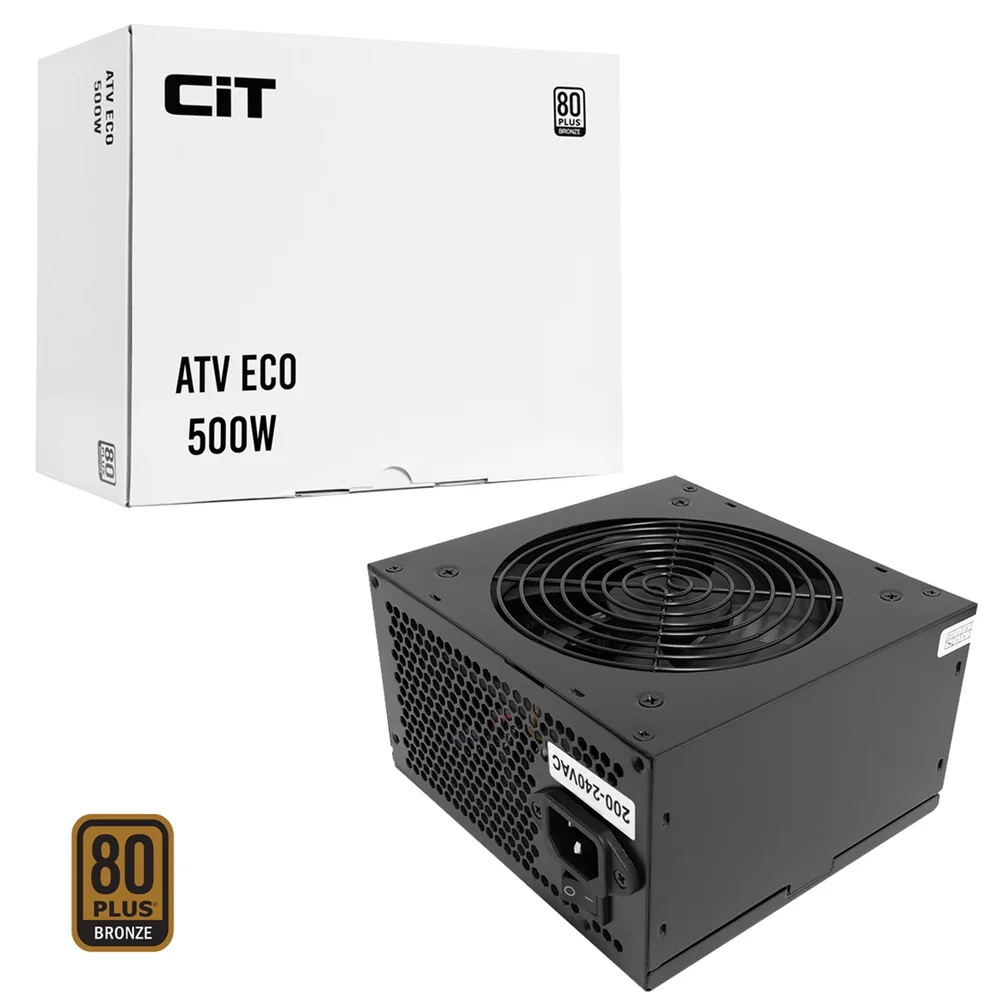

CiT 500w ATV Eco Bronze 500W 230V 12cm Fan APFC

CiT ATV Eco Bronze 500W 230V 12cm Fan APFC Power Supply)

The CiT 500W ATV Eco power supply is perfect for powering a home or office computer and with an 80 PLUS Bronze efficiency rating which guarantees to seamlessly deliver full wattage to your PC system. The ATV Eco power supply housing a 120mm black fan offers both cooling and low noise.

Offering a straightforward and reliable way to power your system, we want the ATV Eco to be that simple with a single +12v rail, active PFC and top tier circuit protections, this PSU is built for purpose and can handle all your main computing needs, just plug it in and get to work.

The smooth elegant all-black casing and all black cable configuration allows the PSU to fit seamlessly into your PCs theme and supported by a two-year warranty. The CiT ATV Eco is the power supply to deliver reliable and affordable power.

Key Features

80 Plus Certification
Efficiency rating measures the ratio of output power to input power, the CiT ATV Eco is 80 PLUS Bronze certified delivering up to 85 percent for high efficiency.

All Black
The all-black PSU casing and cable configuration the ATV Eco effortlessly fits and blends into the rest of your system to add a sleek and stealth finish.

Wired Power Supply
Flat black cables make it easy to connect everything together and easily manage and save the space inside the chassis.

Single 12V Rail Output
The ATV Eco lines/rails are reliable and consistent to ensure your systems overall performance is high, that is why only one +12V rail is used, this way all the components are using the same power from the same source guarantees consistency between all connections.

Active PFC
CiT have used an active PFC ensures small and light components with great flexibility and control allowing you to operate in universal input range for an excellent performance.

Low Noise
The ATV Eco is made with a 12cm black fan to achieve the perfect balance of keeping your components cool without having to hear the fan in motion. The ATV Eco runs smooth and safely whilst using the least amount of noise.

Hardware Protection
Top tier circuit protections keeps your build running strong and your hardware safe - OVP (Over Voltage Protection), OPP (Over Power Protection) & SCP (Short Circuit Protection).

Warranty
The CiT ATV Eco comes with 2 Years Warranty.

PSU Specifications

AC Input
230 VAC 8A 50-60Hz

DC Output Max
+3.3V +5V +12V1 -12V +5VSB
16A 18A 38A 0.3A 2.5A
500W

Connectors
20+4 Pin Main Connectors: 1
4+4 Pin 12V Connectors: 1
SATA Connectors: 6
4-Pin Molex Connectors: 2
6+2 Pin PCI-e Connectors: 2

Detailed Specifications

Dimensions: 150mm x 85mm x 140mm (W x H x D)
Input Voltage - 230 VAC
Input Current - 8A
Input Frequency Range - 50-60Hz
PFC - Active PFC
Power Good Signal - 100-500ms
Hold Up Time - Greater than or equal to 10ms
Efficiency - > 82% (85% max)
MTBF - 100,000 Hours
Protection - OVP / OLP / OPP / SCP
Power - 500W
Operation Temperature - 0-40°C
Safety - CE / CCC / CB / UKCA / ROHS
Cooling - 120mm Black Fan
Noise - 38dBA
80 Plus Certified - Yes - 80 Plus Bronze

General Specifications

Manufacturer Part Number - 500W ATV ECO
EAN Number - 5055492414472
Has Mains Plug - No
Colour - Black
What's In The Box -
Power Supply
Manual
Cable Ties
Screws

Unit (Product) Dimensions (mm) - 150mm x 85mm x 140mm (W x H x D)
Packaging Dimensions (mm) - 240mm x 200mm x 130mm (W x H x D)
Net Weight (KGs) - 1.24 KGs
Gross Weight (KGs) - 1.47 KGs
