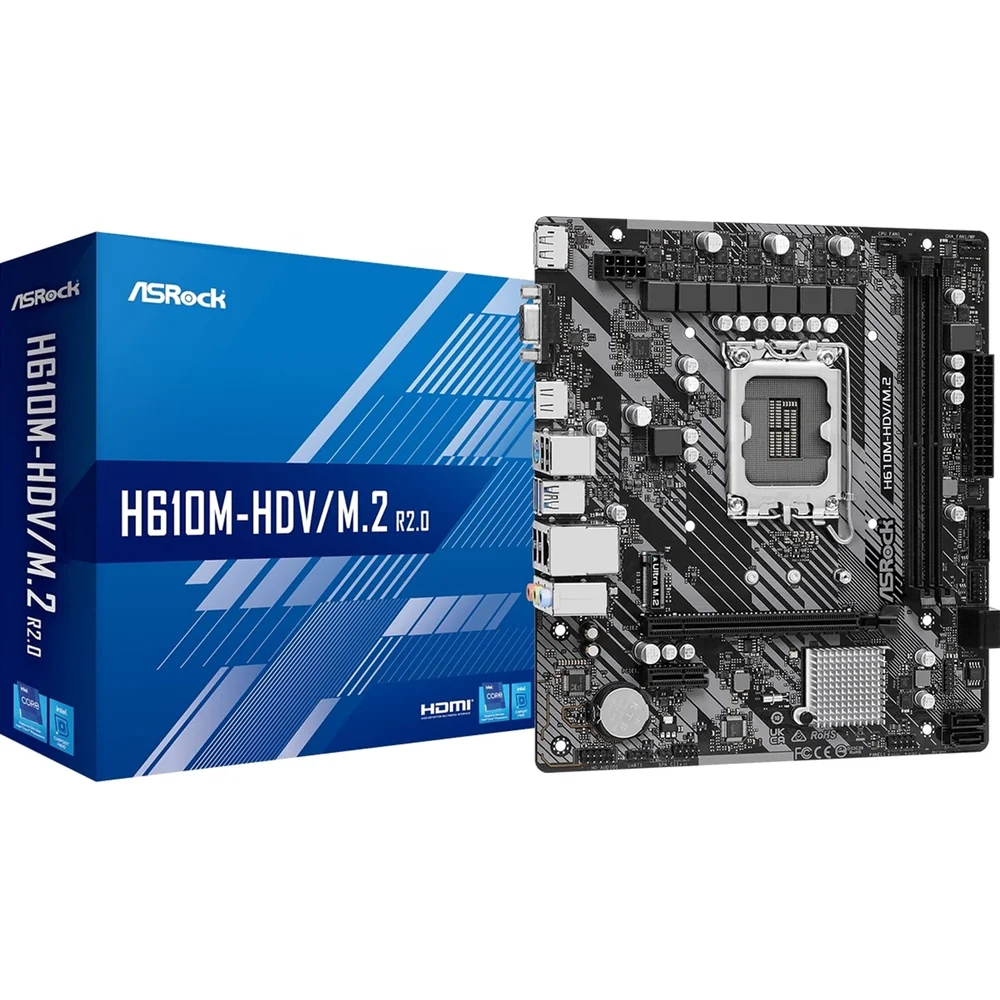

ASRock H610M-HDV/M.2 R2.0 Super Alloy Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

ASRock H610M-HDV/M.2 R2.0 Super Alloy Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

Product ID: 465830010306 This is the unique Computey listing identifier for this product. EAN: 4710483939860 This is the European Article Number (EAN) for this product.
Computey Outlet storefront logo
Computey Outlet Seller ID: 59613811 • Company This seller is registered on Computey as a Company.
5.0 (4 reviews)
Contact seller
£69.92
Out of Stock • Installments available with Klarna at checkout
0 available
See more products from this seller
Free Delivery

Motherboard Specifications

These are the product's key specifications set by the seller.

Product specifications are subject to change at the hands of the seller at any time, and may be inaccurate.
  • Condition: New

Product description

View ASRock H610M-HDV/M.2 R2.0 Super Alloy Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port specs & used value · component catalogue

Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
6+1+1 Phase Power Design
Supports DDR4 3200MHz
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, DisplayPort, D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Ultra M.2 (PCIe Gen3 x4)
4 USB 3.2 Gen1 (2 Rear, 2 Front)
6 USB 2.0 (4 Rear, 2 Front)
Realtek Gigabit LAN

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Premium Power Choke
Compared to traditional chokes, ASRock?s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard?s components from being damaged by these unexpected voltage spikes.

Specification

Unique Feature
ASRock Super Alloy
Premium Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
6+1+1 Power Phase design
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology

Chipset
Intel H610

Memory
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 3200
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB
Supports Intel Extreme Memory Profile (XMP) 2.0

BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

Graphics
Intel Xe Graphics Architecture (Gen 12)
Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection

LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode
Chipset:
1 x PCIe 3.0 x1 Slot (PCIE1)

Storage
Chipset:
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors

Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
4 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Instant Flash

Support CD
Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket

Hardware Monitor
Fan Tachometer: CPU, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
CASE OPEN detection
Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V

Form Factor
Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Solid Capacitor design

OS
Microsoft Windows 10 64-bit / 11 64-bit

Product specifications

Listing Details

  • Listing ID: 465830010306
  • EAN: 4710483939860
  • MPN: H610M-HDV/M.2 R2.0
  • Brand: Asrock
  • Condition: New

Technical

  • Chipset: Not provided
  • Memory Type: Not provided
  • WiFi:Not Included
  • Onboard Video: Not provided

Physical

  • Socket: Not provided
  • Form Factor: Not provided
  • Color: Not provided
