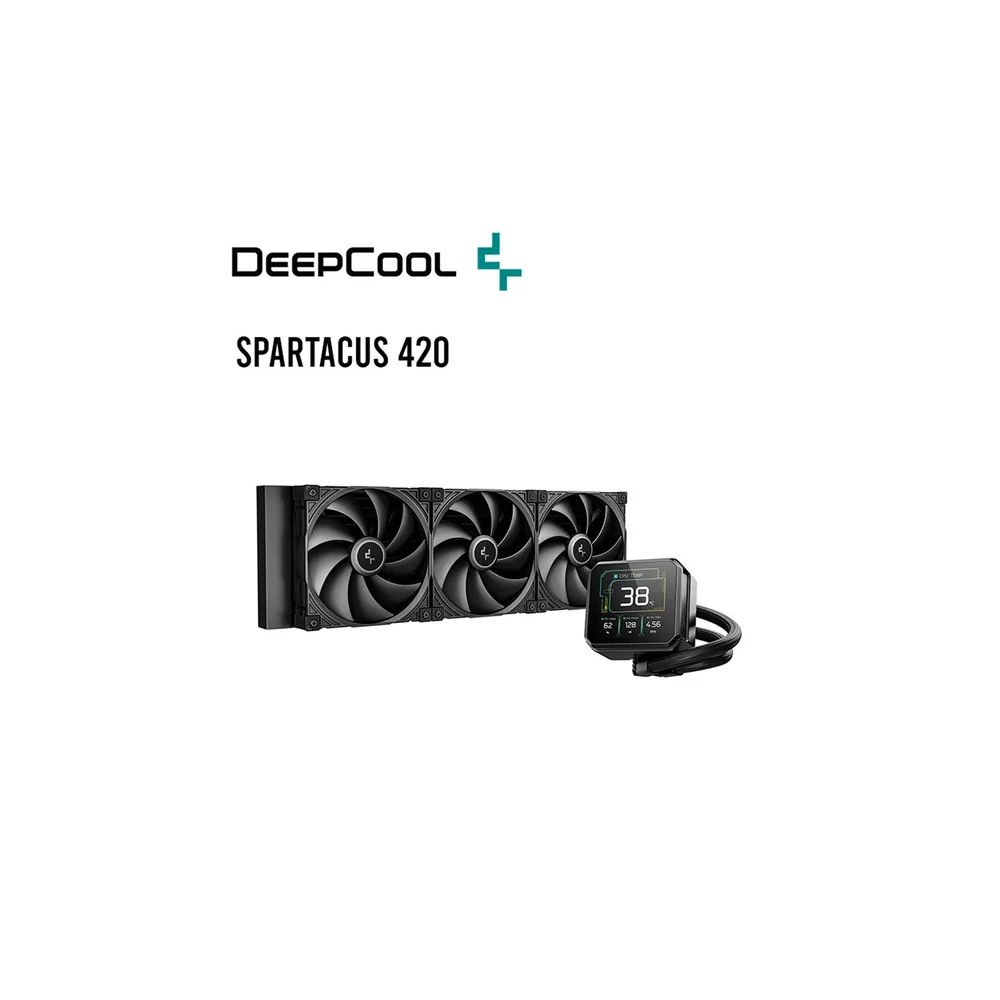

Deepcool Spartacus 420

DeepCool Spartacus 420

Spartacus 420 is DeepCool?s latest generation of liquid coolers featuring an advanced customizable LCD screen. Personalize your build with modular layouts and dynamic visuals on the 3.4" IPS screen. Equipped with an upgraded Gen 6 pump and high-performance fans, it ensures exceptional cooling efficiency and quiet operation.

A Form that Speaks
With a precision-crafted design and refined metal finish, SPARTACUS 420 reflects DeepCool's commitment to modern aesthetics and build quality. The pump cap attaches magnetically for easy removal, and precision pogo pin contacts ensure a stable and reliable connection.

Vividly Fluid 3.4" LCD
A 3.4" IPS display opens a new screen experience, featuring 480x480 resolution and support for 16.7 million colors. Content is structured in modular blocks, enabling a flexible visual layout tailored to individual preferences.

AI-Tuned Chill. Powered By DeepCreative
With the upgraded DeepCreative interface, one click replaces BIOS tinkering ? DeepCreative?s proprietary AI-driven algorithm tracks CPU load in real time and coordinates both fan and pump speeds to match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.

DeepCreative: The Control Center
Unlock a deeply visual experience with the SPARTACUS cooler through DeepCreative software. Monitor real-time system stats, customize your display with flexible block layouts, and switch between multiple modes as needed. When performance takes priority, Zen Mode reduces update frequency to minimize system load while keeping critical data visible.

Keep track of essential system data, including CPU temperature, usage, frequency, and pump speed. Depending on what's shown in the main block, the secondary blocks can display options like GPU power, network speeds, or RAM usage.

Driven By The Gen 6 Pump
The 6th-generation pump features a 3-phase, 6-slot, 4-pole motor with FOC control, delivering smoother and more efficient operation across a PWM-adjustable range of 2,500 to 3,400 RPM. The expanded copper base and fine-tuned microfin geometry help maximize thermal transfer, enabling up to 350W of heat dissipation with low noise and long-term reliability.

The Power Of 30MM Thickness
SPARTACUS 420 is equipped with three 30mm-thick 140mm PWM fans built with PPS for enhanced structural stability at high speeds. Each fan integrates a precision 3-phase 6-slot 4-pole motor with closed-loop control to maintain strong airflow and responsive performance. Hydro bearings support smooth, reliable operation over the long term.

Single Connection, Total Control
The unique 10-pin connector integrates power and signal for both pump and screen, eliminating cable clutter with a single, streamlined connection. Control is centralized through a compact hub, allowing independent adjustment of fan speeds and ARGB lighting per channel, with magnetic and screw mounting options for flexible installation.

Precision Cooling Alignment
SPARTACUS 420 features a newly engineered offset bracket optimized for Intel 24- or 20-core LGA1851 CPUs (such as the Core Ultra 9 285K or Core Ultra 7 265K). By offsetting the cold plate upward, it aligns precisely with the CPU?s hotspot and reduces temperatures by 1-3°C.
Other Intel and AMD platforms remain fully supported with standard mounting hardware.

Rear-Lock Mounting
The rear-mounted locking system allows front-side installation without screws, streamlining the process and resulting in a cleaner build.

Anti-Leak Technology
The SPARTACUS liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and purges it when internal pressure exceeds atmospheric pressure, extending the cooler's lifespan and reducing the risk of leaks.

Application For -
Intel LGA1851/1700
AMD AM5/AM4

Specifications

Net Weight
2647g

Radiator Dimensions
462x140x27 mm(LxWxH)

Radiator Material
Aluminum

Tube length
465mm

Pump Dimensions
99x91x65 mm(LxWxH)

Pump Speed
2500~3400 RPM±10%

Pump Connector
4-pin PWM

Pump Rated Voltage
12 VDC

Pump Rated Current
0.29 A

Pump Power Consumption
3.48 W

Fan Dimensions
140x140x30 mm (LxWxH)

Fan Speed
500~2000 RPM±10%

Fan Noise
=32.89 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.35 A

Fan Power Consumption
4.2W

LED Type
Addressable RGB LED

LED Connector
3-pin(+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
2.0 W(PUMP)

Display Specifications
3.4 inch 480x480 TFT LCD

EAN 6933412729648

P/N
R-SPT420-BKDSMP-G-1
