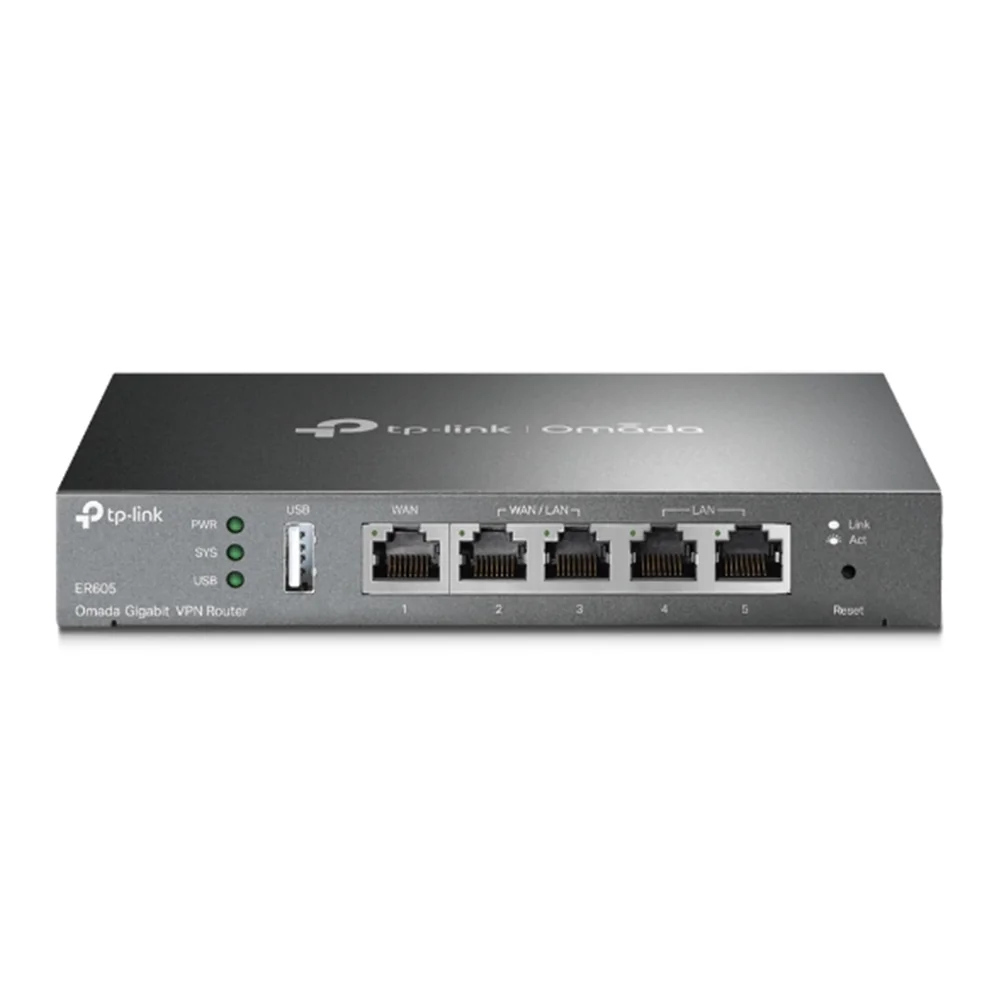

TP-Link ER605

Omada Gigabit VPN Router

Key Features
ntegrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for convenience and easy management.
Five Gigabit Ports: High-speed wired connectivity.
Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.
Highly Secure VPN: Supports up to 20 x LAN-to-LAN IPsec, 16 x OpenVPN, 16 x L2TP, and 16 x PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

Omada SDN?The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.

High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4?5 times thanks to the open line of communication with Omada's user base.

Abundant Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats

IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.

Internet Access Management Strategy
Administrators can moderate users' online behavior and easily specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.

Specifications

HARDWARE FEATURES

Standards and Protocols
? IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
? TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface
? 1 Fixed Gigabit WAN Port
? 2 Fixed Gigabit LAN Ports
? 2 Changeable Gigabit WAN/LAN Ports
? 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup)

Network Media
? 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
? 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
? 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Fan Quantity
Fanless

Button
Reset Button

Power Supply
External 12V/1A DC Adapter

PoE Budget
-

Flash
128 MB NAND

DRAM
256 MB DDR

LED
PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB

Dimensions ( W x D x H )
6.2 x 4.0 x 1.0 in (158 x 101 x 25mm)

Protection
4 kV surge protection

Enclosure
Steel

Mounting
Desktop/Wall-mount

Max Power Consumption
7.94 W

PERFORMANCE

Concurrent Session
150,000

New Sessions /Second
2,600

NAT (Static IP)
? Upload: 945.77 Mbps
? Download: 945.56 Mbps
? Bi-Directional: 1808.29 Mbps

NAT(DHCP)
? Upload: 945.93 Mbps
? Download: 945.43 Mbps
? Bi-Directional: 1808.11 Mbps

NAT(PPPoE)
? Upload: 940.44Mbps
? Download: 940.52 Mbps
? Bi-Directional: 1804.27 Mbps

NAT (L2TP)
? Upload: 845.64 Mbps
? Download: 802.65 Mbps
? Bi-Directional: 931.96 Mbps

NAT (PPTP)
? Upload: 771.66 Mbps
? Download: 874.81 Mbps
? Bi-Directional: 999.54 Mbps

64 Byte Packet Forwarding Rate
? Upload/Download: 1,402,238 pps
? Bi-Directional: 1,681,548 pps

IPsec VPN Throughput
? ESP-MD5-AES256: 171.26 Mbps
? ESP-SHA1-AES256: 224.86 Mbps
? ESP-SHA2-AES256: 248.04 Mbps

OpenVPN
? 21.70 Mbps

L2TP VPN Throughput
? Unencrypted: 864.65 Mbps
? Encrypted: 47.11 Mbps

PPTP VPN Throughput
? Unencrypted: 703.20 Mbps
? Encrypted: 76.65 Mbps

SSL VPN Throughput
-

66 Byte Packet forwarding rate
? Upload/Download: 954.50 Mbps
? Bi-Directional: 1130.00 Mbps

1,518 Byte Packet forwarding rate
? Upload/Download: 997.50 Mbps
? Bi-Directional: 1965.00 Mbps

BASIC FUNCTIONS

WAN Connection Type
? Static/Dynamic IP
? PPPoE
? PPTP
? L2TP
? Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone
Modify WAN/LAN MAC Address

DHCP
? DHCP Server/Client
? DHCP Address Reservation
? Multi-net DHCP*
? Multi-IP Interfaces*

IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough

VLAN
802.1Q VLAN

IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

ACL
IP/Port/Protocol/Domain Name Filtering

Advanced Routing
? Static Routing
? Policy Routing

Bandwidth Control
IP-based Bandwidth Control

Load Balance
? Intelligent Load Balance
? Application Optimized Routing
? Link Backup (Timing, Failover)
? Online Detection

NAT
? One-to-One NAT
? Multi-Net NAT
? Virtual Server
? Port Triggering
? NAT-DMZ
? FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security
? SPI Firewall
? VPN Passthrough
? FTP/H.323/PPTP/SIP/IPsec ALG
? DoS Defence, Ping of Death
? Local Management

Session Limit
IP-based Session Limit

VPN

IPsec VPN
? 20 IPsec VPN Tunnels
? LAN-to-LAN, Client-to-LAN
? Main, Aggressive Negotiation Mode
? DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
? IKEv1/v2
? MD5, SHA1 Authentication Algorithm
? NAT Traversal (NAT-T)
? Dead Peer Detection (DPD)
? Perfect Forward Secrecy (PFS)

PPTP VPN
? PPTP VPN Server
? 10 PPTP VPN Clients
? 16 Tunnels
? PPTP with MPPE Encryption

L2TP VPN
? L2TP VPN Server
? 10 L2TP VPN Clients
? 16 Tunnels
? L2TP over IPSec

OpenVPN
? OpenVPN Server
? 10 OpenVPN Clients
? 16 OpenVPN Tunnels

SECURITY

Filtering
? WEB Group Filtering
? URL Filtering
? Web Security

ARP Inspection
? Sending GARP Packets
? ARP Scanning
? IP-MAC Binding

Attack Defense
? TCP/UDP/ICMP Flood Defense
? Block TCP Scan (Stealth FIN/Xmas/Null)
? Block Ping from WAN

Access Control
Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication
? No Authentication
? Simple Password
? Hotspot(Local User / Voucher / SMS / Radius)
? External Radius Sever
? External Portal Sever
? Facebook

MANAGEMENT

Omada App
Yes

Centralized Management
? Omada Hardware Controller (OC300)
? Omada Hardware Controller (OC200)
? Omada Software Controller
? Omada Cloud-Based Controller

Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance
? Web Management Interface
? Remote Management
? Export & Import Configuration
? SNMP v1/v2c/v3
? Diagnostics (Ping & Traceroute)
? NTP Synchronize
? Syslog Support

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features
? Automatic Device Discovery
? Intelligent Network Monitoring
? Abnormal Event Warnings
? Unified Configuration
? Reboot Schedule
? Captive Portal Configuration

OTHERS

Certification CE, FCC, RoHS

Package Contents
? Gigabti VPN Router ER605
? Power Adapter
? RJ45 Ethernet Cable
? Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Environment
? Operating Temperature: 0?40C (32?104F);
? Storage Temperature: -40?70C (-40?158F)
? Operating Humidity: 10?90% RH non-condensing
? Storage Humidity: 5?90% RH non-condensing
